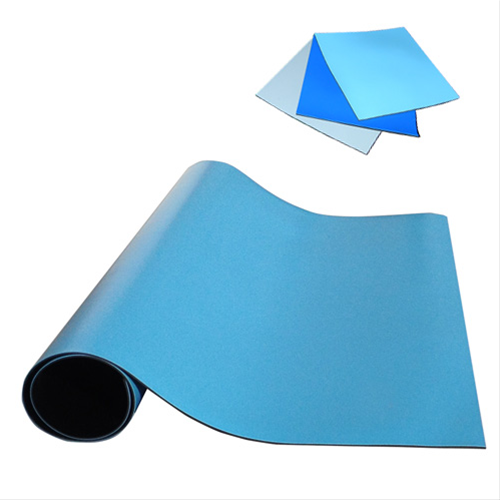

Transforming Technologies MT2500 Series Two-Layer Rubber Mat Roll

The MT2500 Series ESD Two-Layer Rubber ESD Table Mat is a made of a durable 0.060" thich 2-ply rubber. A conductive layer backs the static dissipative top layer that creates outstanding electrical performance characteristics. The 2500 Series offers excellent resistance to hot solders, soldering irons and most solvents.

MT2500 is available in rolls or cut mats. Cut mats are packaged individually with two (2) female 10 mm snaps and a common point ground cord.

Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ESD 4.1.

Specifications:

• Thickness: 0.060"
• Hardness: 60 (Shore A)
• Tensile Strength: >1000 PSI
• Elongation: >300%
• Resistance to Ground: 8 x 10^6-8 ohms
• Resistance Point to Point: 2 x 10^6-8 ohms
• Charge Decay (5kV to 50V): 0.01 seconds
