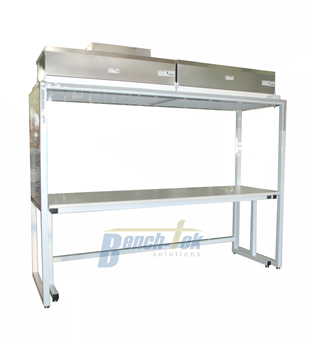

VERTICAL LAMINAR FLOW HEPA WORKSTATION
Standard Features: 2 ea. 24" x 48" HEPA Fan Filter Unit with Speed Control: 99.99% efficient 0.3 micron particles, with solid state speed control for air velocity from 75 to 105 fpm (feet per minute)
Electrical: Total draw from the unit: 2.5 amps (operating); 4.5 amps (start-up)
- 12' Long, 115v Power Cord (Plugs into standard 20A duplex outlet)
- 2 ea. Cleanroom safe teardrop lighting
- 1/4" thick clear acrylic panels on the back and sides held in place using CleanSeal attachment system.
Framework: 2" x 2" heavy gauge tubular steel, 0.083" thickness, cold-rolled fully welded.
Finish: White polyurethane powder coating baked at 450 degrees.
30"D x 96"L x 30"H. Four Leg Workbench with Cleanroom Backer and Lower Crossmember Support (Footrest) Post Form Top with 90 degree front edge and 2" x 2" Steel Legs. - Finish: White polyurethane powder coating baked at 450 degrees
Featured Accessories: Cleanroom Shroud 33-1/2W" x 102" x 18"H. 14 gauge sheet metal (Finish white baked polyurethane powder coating)
| Standard Sizes (D" x L") |
| |
| | 30 x 48 | 36 x 48 | |
| | 30 x 60 | 36 x 60 | |
| | 30 x 72 | 36 x 72 | |
| | 30 x 96 | 36 x 96 | |
| | | |
| | | |
| *Custom sizes available upon request |
